| General Specifications | |
| Machine Type | Colour Laser All-In-One |
| Available Functions | Print, Copy, Scan and Fax |
| Print Specifications | |
| Print Speed | Single sided : Up to 33 ppm (A4)
Up to 60 ppm(A5-Landscape)
Double sided : Up to 29.5 ipm (A4) |
| Printing Method | Colour laser beam printing |
| Print Resolution | Up to 1200 x 1200 dpi |
| Warm-up Time | Approx. 14 seconds or less from power on |
| First-Print-Out Time | Colour approx.: 8.38 seconds or less
Mono approx.: 8.16 seconds or less |
| Printer Languages | UFRII, PCL5c, PCL6, Adobe® PostScript |
| Fonts | 45 PCL fonts |
| Print Margins | 5 mm-top, bottom, left and right
10 mm-top, bottom, left and right (Envelope) |
| Toner Saver Mode | Yes |
| Advanced Printing Features | Encrypted Secure Print
Secure Print
Print from USB memory key (JPEG/TIFF/PDF)
Print from Cloud (Dropbox, GoogleDrive, OneDrive) (PDF/JPEG)
Microsoft Universal Print support
iOS: AirPrint, Canon PRINT app
Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT app, IPP everywhere |
| Copy Specifications | |
| Copy Speed | Single sided (A4): Up to 33 ppm
Double sided (A4): Up to 29 ipm |
| First-Copy-Out Time | ADF (A4):
Colour Approx. 8.8 seconds or less
Mono Approx. 7.6 seconds or less
Platen (A4):
Colour Approx. 9.4 seconds or less
Mono Approx. 8.3 seconds or less |
| Copy Resolution | Up to 600 x 600 dpi |
| Copy Modes | Text/Photo/Map (Default),Text/Photo/Map (quality), Printed Image, Text |
| Double Sided Copying | 2-sided to 2-sided (Automatic) |
| Multiple Copies | Up to 999 copies |
| Reduction / Enlargement | 25-400% in 1% increments |
| Other Features | Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Two-sided Original, Sort, N on 1, Sharpness, Erase Frame, Copy ID Card, Copy Passport, Color Mode, Reserved copy |
| Scan Specifications | |
| Standard Type | Colour |
| Scan Resolution | Optical: Up to 600 x 600 dpi
Enhanced: Up to 9600 x 9600 dpi |
| Scan Speed | Single sided mono: 50ipm (300x300dpi)
Single sided colour: 40ipm (300x300dpi)
Double sided mono: 100ipm (300x300dpi)
Double sided colour: 80ipm (300x300dpi)
Single sided mono: 40ipm (300x600dpi)
Single sided colour: 20ipm (300x600dpi)
Double sided mono: 80ipm (300x600dpi)
Double sided colour: 40ipm (300x600dpi) |
| Colour Scanning Depth | 24 bit/24 bit (input/output) |
| Greyscales | 256 levels |
| Compatibility | TWAIN , WIA, ICA |
| Maximum Scan Width | 216mm |
| Scan to E-mail
Scan to PC
Scan to USB Memory Key
Scan to FTP | TIFF/JPEG/PDF/Compact PDF/Searchable PDF / PDF/A-1b |
| Scan to Cloud | TIFF/JPEG/PDF/PNG |
| iFAX | ITU-T.37 |
| Modem Speed | 33.6 Kbps (Up to 3 seconds/page) |
| Receive Mode | Fax only, Fax/Tel Auto Switch, Answer Mode, Manual |
| Fax Resolution | Standard: 200 x 100 dpi
Fine: 200 x 200 dpi
Super fine: 200 x 400 dpi
Ultra fine: 400 x 400 dpi |
| Fax Memory | Up to 512 pages |
| Speed Dials | Up to 281 dials |
| Group Dials/Destinations | Max. 299 dials / Max. 299 destinations |
| Sequential Broadcast | Max. 310 destinations |
| Memory Backup | Permanent fax memory backup (Backup with flash memory) |
| Double Sided Faxing | Yes (Transmit and Receive) |
| Media Handling | |
| Scanner Type | Platen, 2-sided ADF (single pass) |
| Paper Input (Standard) | 250-sheet cassette

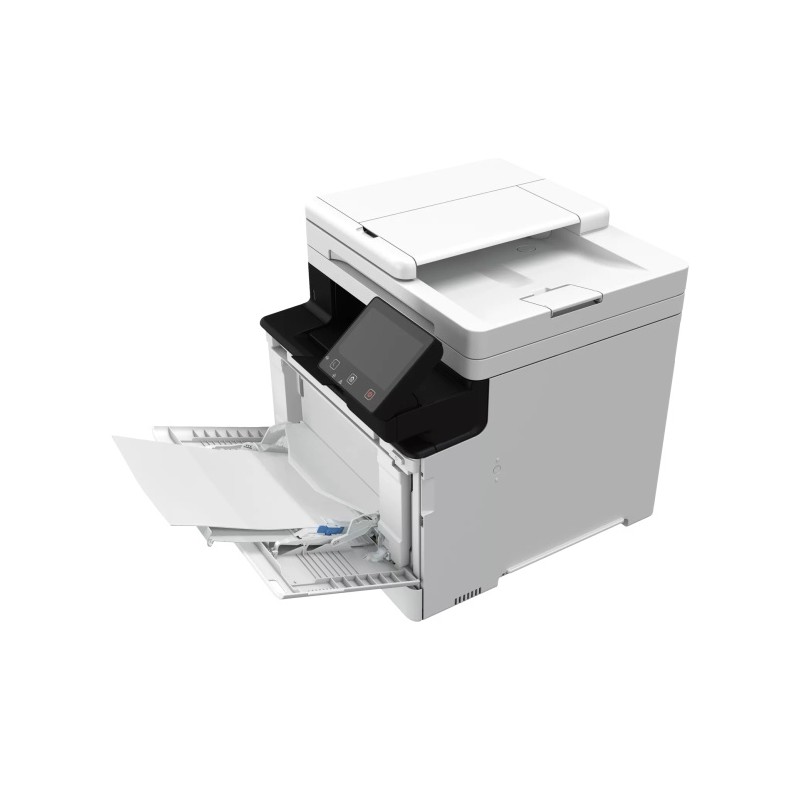

50-sheet multi-purpose tray
50-sheet ADF |
| Paper Input (Option) | 550-sheet cassette |
| Maximum Paper Input Capacity | 850-sheet cassette |
| Paper Output | 150-sheet |
| Media Types | Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Pre-punched, Label, Post card, Envelope |
| Media Sizes | Cassette (Standard):
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Envelop (COM10, DL, C5, Monarch), Custom sizes: Min. 98 x 148 mm Max. 216.0 x 356.0 mm.
Multi-purpose tray:
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch),
Custom sizes: Min 76.0 x 127 mm Max. 216.0 x 356.0 mm.
Cassette (Optional):
A4, A5, A5 (Landscape), A6, B5, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card,
Custom sizes: Min. 100 x 148 mm Max. 216.0 x 356.0 mm.
ADF:
A4, A5, A6, B5, Legal, Letter, Statement, Custom sizes: Min. 48 x 85.0 mm Max 216.0 x 355.6 mm |
| Media Weights | Cassette (standard and optional): 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
Multi-purpose tray: 60 to 176 g/m² (Up to 200 g/m² with Coated paper)
ADF: 50 to 105 g/m² |
| Double Sided Printing | Automatic
Cassette:
A4, A5, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K
Custom size - Min. 148 x 148 mm Max. 216 x 356 mm
60 to 200 g/m² |
| Interface & Software | |
| Interface Type | USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection |
| Operating System Compatibility | Windows® 11 / Windows® 10 / Server® 2025 / Server® 2022 / Server® 2019 / Server® 2016
Mac OS X version 10.15 & up
Linux |
| Network Protocol | Print:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
Scan:
Push Scan: File: FTP (TCP/IP), SMB3.1.1 (TCP/IP)
E-mail/I-Fax: SMTP (send), POP3 (receive)
Pull Scan: TCP/IP
Management:
SNMPv1, SNMPv3 (IPv4,IPv6)
Security:
TLS1.3, IPSec, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless):
Infrastructure Mode:
WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE (AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES)
Access Point Mode:
WPA2-PSK(AES), WPA3-SAE (AES) |
| Software and Printer Management | MF Scan Utility,
Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
Cooperating with External Security Audit System (Security Information and Event Management)
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
Application Library |
| General Features | |
| Recommended Monthly Print Volume | 750 - 4,000 pages per month |
| Duty Cycle | Max. 50,000 pages per month |
| Processor Speed | 1200MHz |
| Memory | 1GB |
| Storage | 4GB |
| Control Panel | 12.7 cm LCD Colour Touch Screen |
| Dimensions with Trays
(W x D x H) | 425 mm x 461 mm x 430 mm |
| Installation Space
(W x D x H) | 625 mm x 1,117 mm x 990 mm |
| Weight | Approx. 23.30 Kg |
| Power Source | 220-240V(±10%) 50/60Hz (±2Hz) |
| Power Consumption | Maximum: Approx. 1,380 W
Active printing: Approx. 700W
Standby: Approx. 24.0 W
Sleep mode: Approx. 1.0 W
Typical Electricity Consumption (TEC): 0.30 kWh/week (230V)
For detailed information relating to Lot26 regulation, please go to:
https://www.canon-europe.com/business/lot26/ |
| Noise Levels | Sound Pressure :
Active: Simplex 51dB / Duplex 51dB (BW), 50dB (CL)
Standby: 29 dB
Sound Power:
Active: 65dB or less
Standby: 41dB or less |
| Consumables | |

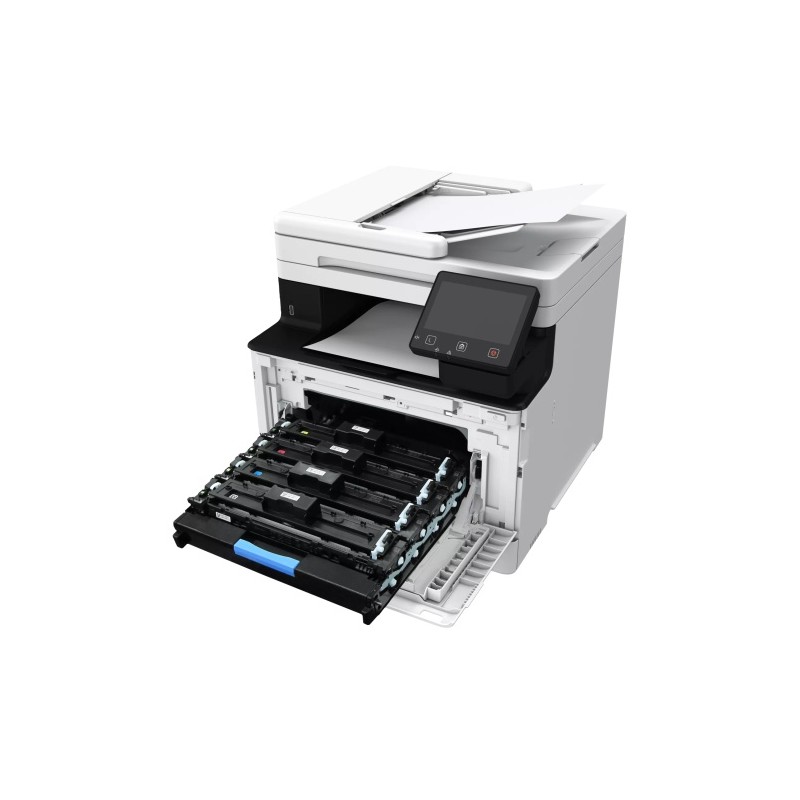

| Cartridges | Cartridge 069 Black (2,100 pages)
Cartridge 069H Black (7,600 pages)
Cartridge 069 Cyan (1,900 pages)
Cartridge 069H Cyan (5,500 pages)
Cartridge 069 Magenta (1,900 pages)
Cartridge 069H Magenta (5,500 pages)
Cartridge 069 Yellow (1,900 pages)
Cartridge 069H Yellow (5,500 pages) |
| Accessories & Options | |

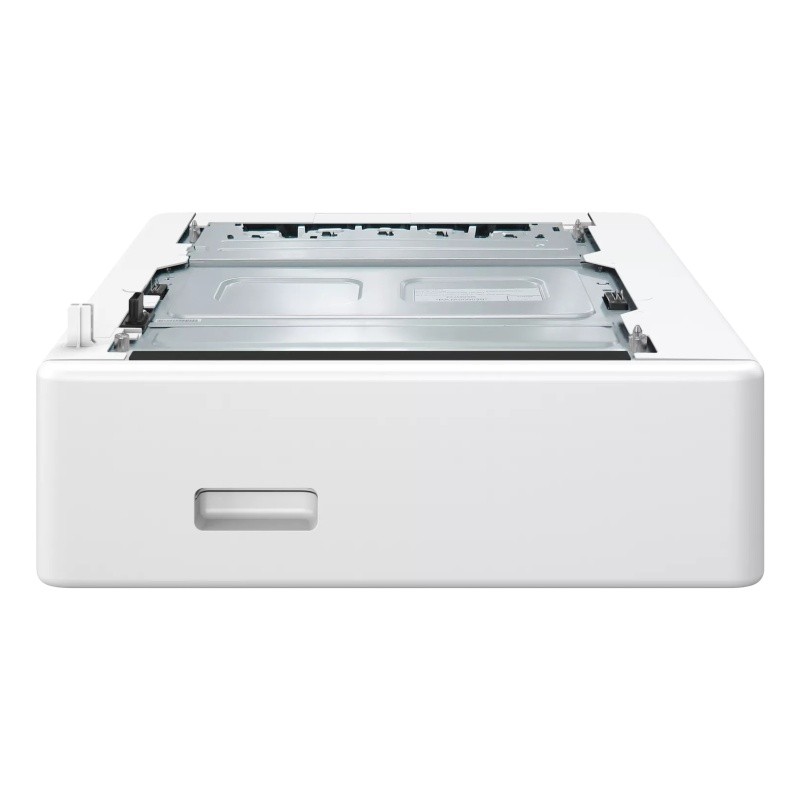

| Items | PAPER FEEDER PF-K1 (550-sheet cassette) (Option)
TEL 6 Kit Long Cord (Telephone handset) (Option) |
